Condenser Microphone

Condenser microphones operate on an electrostatic principle, using charged metal plates to help generate sound.

Condenser microphone

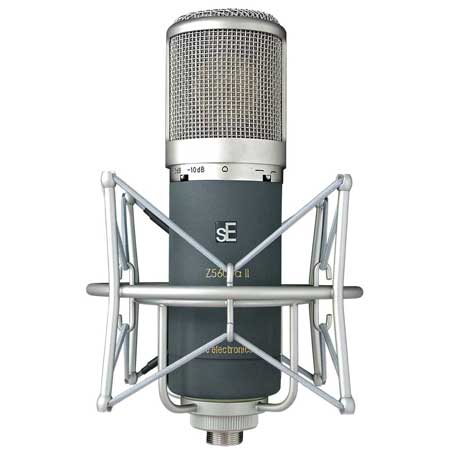

Figure 1 - Typical Condenser Microphone in a shock mount holder

Condenser microphones use a pair of charged metal plates, one fixed (the backplate) and one movable (the diaphragm), forming a capacitor.

When a sound wave hits the diaphragm, the distance between the two plates changes which produces a change in an electrical characteristic called capacitance. It is the variation of the spacing, due to the motion of the diaphragm relative to the fixed backplate, which produces the electrical signal corresponding to the sound picked up.

Condenser microphone working parts

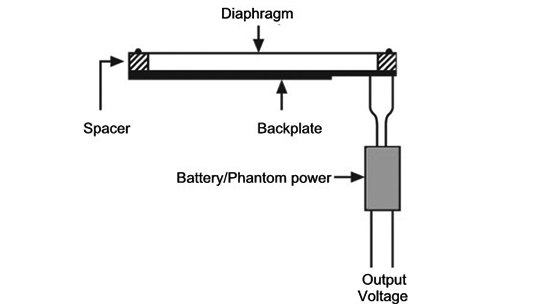

Figure 2 - A diagram showing how a diaphragm and backplate create a capacitor

To obtain a signal, condenser microphones require an electrical current to charge the plates. The current usually provided either by a battery or is sent down the microphone cable itself. This latter method is known as phantom powering.

Most condenser microphones can operate with phantom power voltages ranging from 11 to 52 Volts.

Phantom power is usually provided by the mixing console/audio interface.

Advantages

Key advantages of a condenser microphone:

  • The diaphragm assembly is light compared to that of dynamic microphones, hence it is more efficient at moving and is capable of capturing a range of high frequencies.
  • Easy to obtain a flat frequency response and extended frequency ranges.
  • Condenser microphones can be small in design.

Disadvantages

Key disadvantages of a condenser microphone:

  • There is a limit to the maximum signal level the electronics can handle.
  • They are more complex than dynamic microphones and tend to be more adversely affected by extremes of temperature and humidity.
  • Cheaper models can produce a small amount of noise from the electronics.

Summary

Condenser microphones are more expensive than dynamic microphones but are more suitable for capturing the sounds of acoustic instruments and vocals due to their high sensitivity. They should be avoided when dealing with high sound pressures, such as that created from a kick drum.

The sound produced from a condenser microphone can be described as being crisp, clear and detailed.

Often the sound quality is better than that of a dynamic microphone.
